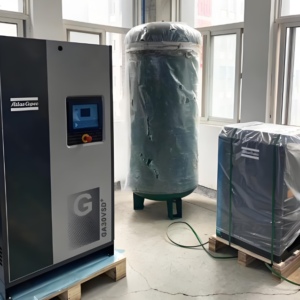

Atlas Copco GA 26VSD+ tot GA 45VSD+ luchtcompressoren

Categorie Atlas Copco-luchtcompressor

Aanvullende informatie

Model	GA26VSD+, GA30VSD+, GA37VSD+, GA37VSD++, GA45VSD+
Working Pressure	4-12.5 bar(e), 58-181psig
Capacity FAD	14.8-157 I/s, 0.89-9.42 m³/min, 30.6-333 cfm
Installed Motor Power	26-45 kW, 35-60 hp
Noise level	67 dB(A)
Weight	373-367 KG
Price	USD 8,500-USD 16,500

GA26VSD+, GA30VSD+, GA37VSD+, GA37VSD++, GA45VSD+ Air Compressor Parameters

Model	Working Pressure		Capacity FAD*			Installed Motor Power		Noise level**	Weight	Full performance model weight	Outlet Size
Model	bar(e)	psig	I/s	m³/min	cfm	kW	hp	dB(A)	kg	kg	Outlet Size
GA 26VSD+	4	58	14.8-85.8	0.89-5.15	31.3-181.8	26	35	67	373	490	G1″F
	7	102	14.5-85.3	0.87-5.12	30.6-180.7	26	35	67	373	490
	9.5	138	16.9-77.9	1.01-4.68	35.7-165.1	26	35	67	373	490
	12.5	181	16.3-64.1	0.98-3.85	34.6-135.8	26	35	67	373	490
GA 30VSD+	4	58	15.1-98.0	0.90-5.88	31.9-207.6	30	40	67	376	500	G1″F
	7	102	15.0-97.4	0.90-5.84	31.8-206.2	30	40	67	376	500
	9.5	138	17.2-85.6	1.03-5.14	36.3-181.3	30	40	67	376	500
	12.5	181	16.7-72.0	1.00-4.32	35.3-152.4	30	40	67	376	500
GA 37VSD+	4	58	14.8-116.4	0.89-6.99	31.4-246.8	37	50	67	376	500	G1″F
	7	102	14.8-114.8	0.89-6.89	31.4-243.1	37	50	67	376	500
	9.5	138	17.1-102.1	1.03-6.13	36.2-216.3	37	50	67	376	500
	12.5	181	16.4-86.6	0.98-5.20	34.6-183.4	37	50	67	376	500
GA 37VSD++	4	58	26-132	1.55-7.89	55-279	37	50	67	860	1060	G2″F
	7	102	25-130	1.49-7.83	53-276	37	50	67	860	1060
	9.5	138	25-115	1.48-6.90	53-244	37	50	67	860	1060
	12.5	181	38-98	2.28-5.88	81-208	37	50	67	860	1060
GA 45VSD+	4	58	26-157	1.55-9.42	55-333	45	60	67	860	1060	G2″F
	7	102	25-155	1.49-9.28	55-328	45	60	67	860	1060
	9.5	138	25-136	1.48-8.13	53-287	45	60	67	860	1060
	12.5	181	38-113	2.28-6.80	81-240	45	60	67	860	1060
