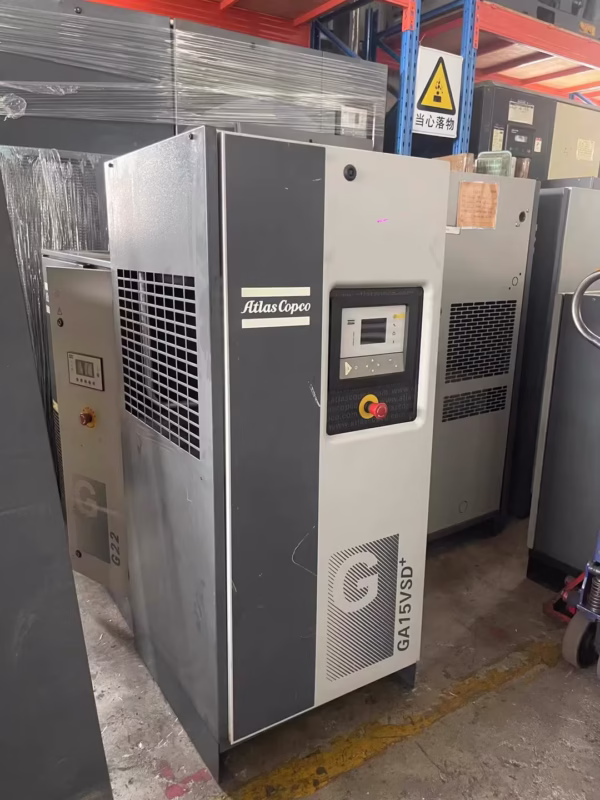

Atlas Copco GA15VSD+ Air Compressor
Additional information
| Model | Atlas Copco GA15VSD+ Air Compressors |
|---|---|
| Delivery time | In Stock |
| Installed Motor Power | 15 kW, 20 hp |
| Working Pressure | 5.5-12.5 bar(e), 80-181 psig |
| Size | 630mm*610mm*1420mm |
| Price | USD $6,000-USD $7,500 |
GA15VSD+ Air Compressor Parameters
| Model | Working Pressure | Capacity FAD* | Installed Motor Power | Noise level** | Weight | Full performance model weight | Outlet Size | ||||
| bar(e) | psig | I/s | m³/min | cfm | kW | hp | dB(A) | kg | kg | ||
| GA 15VSD+ | 5.5 | 80 | 6.8-42.3 | 0.41-2.54 | 14.5-89.7 | 15 | 20 | 64 | 199 | 288 | G3/4″F |
| 7 | 102 | 7.0-40.8 | 0.42-2.45 | 14.8-86.4 | 15 | 20 | 64 | 199 | 288 | ||
| 9.5 | 138 | 6.7-34.6 | 0.40-2.08 | 14.2-73.3 | 15 | 20 | 64 | 199 | 288 | ||
| 12.5 | 181 | 7.1-27.2 | 0.43-1.63 | 15.0-57.6 | 15 | 20 | 64 | 199 | 288 | ||
