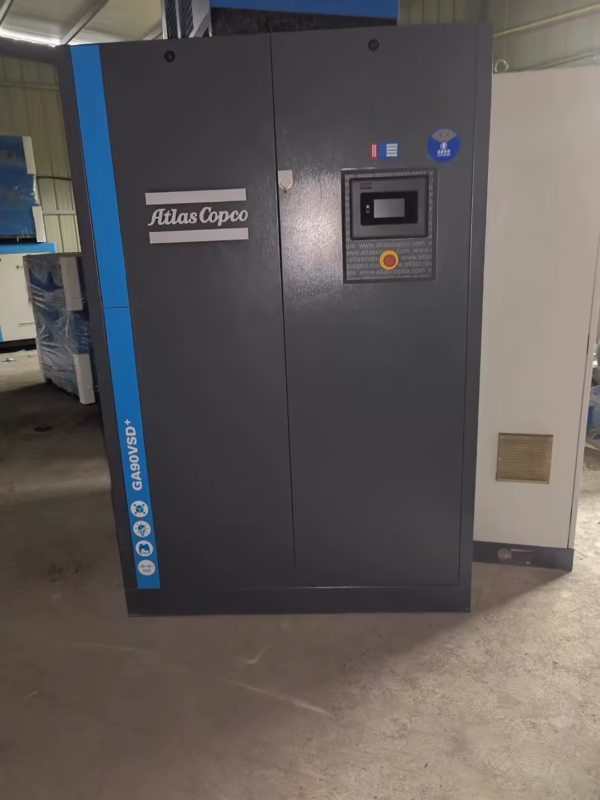

Atlas Copco GA90 VSD+ Air Compressor
Additional information
| Model | Atlas Copco GA90 VSD+ Air Compressors |
|---|---|
| Delivery time | In Stock |
| Installed Motor Power | 90 kW, 125 hp |
| Working Pressure | 4-12.5 bar(e), 58-181 psig |
| Size | 1300mm*1400mm*1968mm |
| Price | USD $20,000-USD $35,500 |
GA90VSD+ Air Compressor Parameters
| Model | Working Pressure | Capacity FAD* | Installed Motor Power | Noise level** | Weight | Full performance model weight | Outlet Size | ||||
| bar(e) | psig | I/s | m³/min | cfm | kW | hp | dB(A) | kg | kg | ||
| GA 90VSD+ | 4 | 58 | 48-311 | 2.83-18.68 | 102-660 | 90 | 125 | 74 | 1213 | 1503 | G21/2″F |
| 7 | 102 | 49-306 | 2.93-18.35 | 104-648 | 90 | 125 | 74 | 1213 | 1503 | ||
| 9.5 | 138 | 60-269 | 3.58-16.15 | 127-570 | 90 | 125 | 74 | 1213 | 1503 | ||
| 12.5 | 181 | 71-218 | 4.25-13.07 | 150-461 | 90 | 125 | 74 | 1213 | 1503 | ||
